Rescue Protective clothing RJF-F2X(Summer)

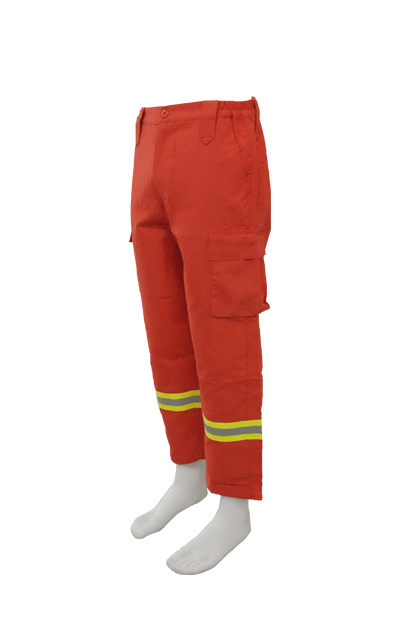

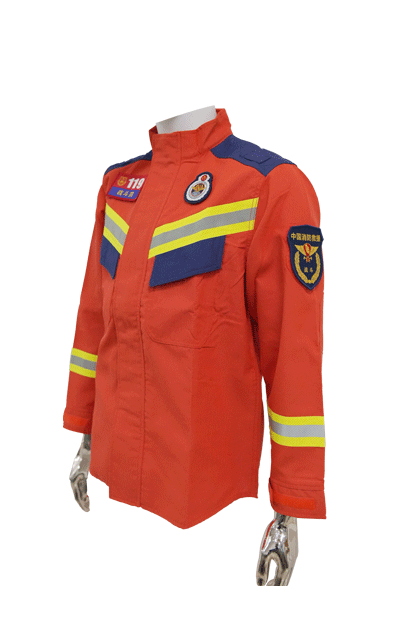

● The performance meets the standard requirements of XF633-2006 "Firefighter Rescue protective Clothing". The whole set of clothing includes jacket, pants, cloth cap (new fire rescue hat badge) and belt. The clothing logo and size are based on user's demand.
Consult Now
Performance introduction
● The technical performance conforms to the standard requirements of XF633-2006 "Firefighter Rescue protective Clothing". The whole set of clothing includes jacket, pants, cloth cap (new fire rescue hat badge) and belt. The clothing logo and size are based on user needs.
● Material requirements: The use of single fabric, liquid dyed arylon, flame retardant viscose fiber interwoven orange red double fabric; With anti-static, flame retardant, light, strong tensile resistance and other properties.
Outer fabric
1) Color fastness: Color fastness to washing and staining ≥4; Color fastness to water rubbing ≥4.
2) Thermal stability: After the thermal stability test at (180±5)℃, the size change rate (meridional ≤0%, zonal ≤1%), and the sample surface did not change significantly.
3) Surface moisture resistance: ≥4 grade.
4) Mass per unit area: ≥200g/m2。
5) Breaking strength: longitude ≥1395N, latitude ≥1095N; Tear strength: longitude ≥245N, latitude ≥185N.
6) Flame retardant performance: continuous burning time (longitude and latitude are 0s), damage length (longitude and latitude ≤40mm), and no melting, dripping phenomenon.
● Joint breaking strength: joint breaking strength ≥820N.
● Needle spacing density of rescue suit: light and dark line ≥12 stitches /3cm, overseam ≥11 stitches /3cm.
● Color difference of rescue dress: ≥4.
● Quality: The whole set of clothing (clothes + pants)≤1.05kg.
● Antistatic performance: ≤0.2μC.
Reflective sign belt for rescue suit
1) Inverse reflection coefficient: ≥470cd/(lx·m2).
2) Thermal stability: After the thermal stability test at (180±5)℃, the surface of the reflective material has no carbonization and shedding phenomenon, and the reverse reflection coefficient is ≥450cd/(lx·m2).
3) Washing resistance: After washing 25 times, no damage, falling off, discoloration phenomenon.
4) High and low temperature performance: After high and low temperature performance test, no fracture, wrinkle, distortion phenomenon.
5) Flame retardant performance: continuous burning time is 0s; And no melting, dripping phenomenon.
● Thermal stability of sewing thread: after 180℃, 5min, no melting and burning phenomenon.
● Thermal stability of hard accessories: at the temperature of (180±5)℃, after 5 minutes, the hard accessories maintain their original function.
● The appearance quality meets the standard requirements
● Printing on the back, the center of the back of the garment is sprayed with fire-resistant, waterproof and fluorescent materials. The font is simple, flat and black, and the color is silver. The size of each word is 70mm×85mm, the word spacing is 20mm, and the position is 30mm above the reflective strip. At 30mm below the reflective strip, the font is simple, flat and black, the color is silver, the size of each word is 50mm×55mm, and the word spacing is 15mm.
● Provide testing reports issued by third-party testing institutions at or above the provincial level.
