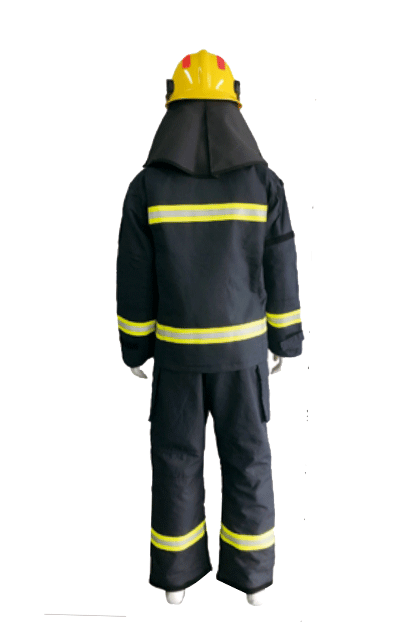

Fire protective clothing for firemen
● The upper and lower split structure, the overlapping part between the jacket and the pants should not be less than 200mm.
● Collar: The collar is a standing collar, the front collar is equipped with a collar collar, and the inside of the collar is made of smooth skin and comfortable fabric.
● Reflective identification belt: the top is provided with a 360-degree circular reflective identification belt on the chest, hem and cuff, and the pants are provided with a 360-degree circular reflective identification belt on the small leg. The reflective tape is 50.8mm(2 inches) wide and silver yellow in color. The center of the back of the garment is sprayed with fire-resistant, waterproof and fluorescent materials, and the font, color, font size and spacing meet the requirements of the pattern.
Consult Now
Main structure
● The upper and lower split structure, the overlapping part between the jacket and the pants should not be less than 200mm.
● Collar: The collar is a standing collar, the front collar is equipped with a collar collar, and the inside of the collar is made of smooth skin and comfortable fabric.
● Reflective identification belt: the top is provided with a 360-degree circular reflective identification belt on the chest, hem and cuff, and the pants are provided with a 360-degree circular reflective identification belt on the small leg. The reflective tape is 50.8mm(2 inches) wide and silver yellow in color. The center of the back of the garment is sprayed with fire-resistant, waterproof and fluorescent materials, and the font, color, font size and spacing meet the requirements of the pattern.
● Pants crotch: The crotch of pants adopts the integrated design; Trouser braces. With H-type strap, strap should be adjustable length, removable.
● Top front flap zipper size is not less than 8.
Accessory structure
● Pocket: the left chest of the jacket is equipped with a stereo radio pocket, the inside is equipped with an inside insert bag, and the bottom is equipped with an outside paste bag. 1 tool bag for each outer thigh. All outer pockets are equipped with leak holes.
● Left arm Velcro: A 90mm×110mm shield Velcro is set on the outside of the left upper arm with a shield logo.
●Cuff: The cuff is designed in circular arc, the outer material is wrapped, the tightening adjusting loop is set, and the rib protective wrist guard is configured, the rib protective wrist guard has a thumb hole, and the internal waterproof cloth is set.
● Top flap: Top flap Velcro is through; The bottom of the jacket. Top comfort layer hem set waterproof cloth.
● Trouser leg: the trouser leg adopts circular design, the inside is provided with waterproof cloth, the inside is provided with zipper, and the trouser leg is covered with wear-resistant material.
● Reinforcing treatment: Shoulder, elbow and knee should be thickened with wear-resistant layer, which should be soft and easy to clean.
● The left and right shoulders are provided with two hanging loops.
Technical performance
● Overall thermal protection performance TPP(cal/cm) : ≥29.
● Weight of the whole set: ≤2.9kg.
● Flame retardant performance: outer damage length (longitude, latitude ≤22mm); Damage length of waterproof breathable layer (heat insulation layer) (longitude and latitude ≤41mm); Damage length of comfort layer (warp and latitude ≤33mm).
● Breaking strength: outer layer (longitude ≥2300N, latitude ≥2280N); Comfort layer (longitude ≥450N, latitude ≥380N).
● Outer tearing strength: longitude ≥1090N, latitude ≥910N.
● Thermal stability performance: After the thermal stability performance test, the size change rate of the outer layer is ≤1%, the size change rate of the waterproof breathable layer is ≤2%, the size change rate of the outer strengthening material is ≤1%, and the size change rate of the comfort layer is ≤3%, and the sample surface should not change significantly.
● Reflective mark with flame retardant performance: warp, weft damage length ≤22mm; Flame retardant properties of the outer reinforced material: warp and weft damage length ≤21mm.
● Waterproof breathable layer: hydrostatic pressure: ≥50KPa; Oil rejection performance ≥3; Moisture permeability ≥5950g/m2·24h.
● Shrinkage rate: the dimension change rate of the outer layer is ≤0.7%, the dimension change rate of the waterproof breathable layer is ≤1.2%, and the dimension change rate of the comfort layer is ≤1.3%.
● Joint breaking strength: outer layer longitude ≥1090N, latitude ≥985N.
●Provide the inspection report of the national fire equipment Quality supervision and inspection Center.
● The technical performance meets the requirements of XF 10-2014 "Firefighter fire protective clothing" standard. The three-layer structure is used, which is an outer layer, a waterproof breathable layer and a comfortable layer.
